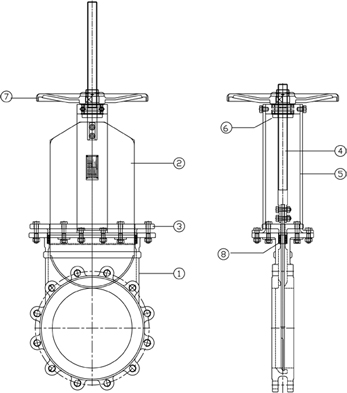

Name and material of each part
| 번호 | 명칭 | 재료 | 기호 |
|---|---|---|---|
| ① | Body，Bonnet | Cast stainless steel Cast steel Cast iron |
A351-CF8, A351-CF8M, A351-CF3, A351-CF3M, 등 A216-WCB A536 |
| ② | Disc | Stainless steel plate | A240-304，A240-316 등 |
| ③ | Gland | Stainless steel plate | A240-304 |
| ④ | Stem | Stainless steelrod | A479-304，A479-316 등 |
| ⑤ | Yoke | Stainless steel plate(steelplate) | A240-304，A283-C |
| ⑥ | Yoke Sleeve | Brass | |
| ⑦ | Handle | A536 | |
| ⑧ | Packing | Non-asbestos | PTFE |
