Knife Gate Valve

Home Product Knife Gate Valve SLK(SLV)

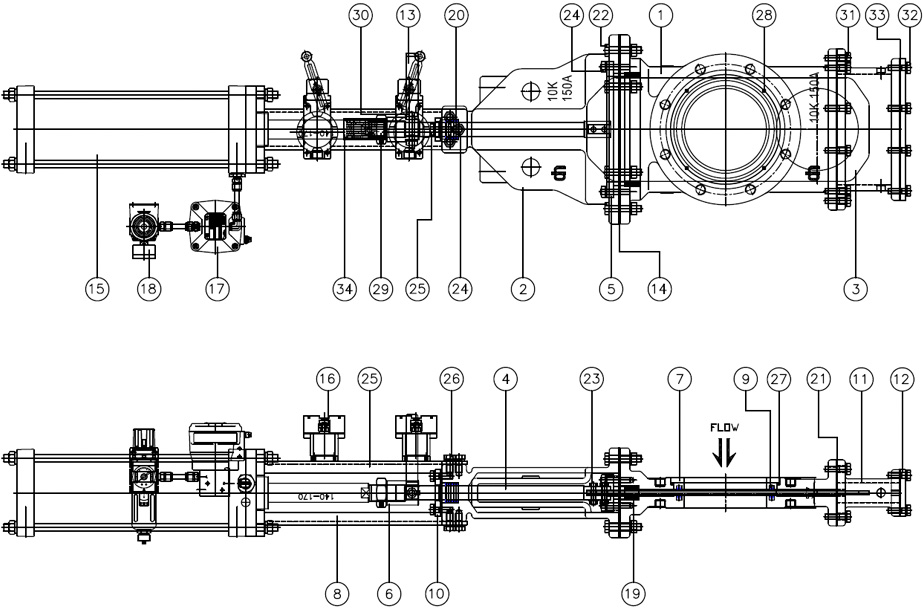

Name and material of each part

View larger image +

number	name
1	Body
2	Bonnet
3	Disc
4	Stem
5	Gland
6	Clamp
7	Cover
8	Yoke
9	Rubber seat

number	name
10	Bonnet gland
11	Bonnet bottom
12	Bonnet cover
13	Limit bar
14	Body gasket
15	Cylinder
16	Limit S/W
17	Sol’ V/V
18	Air set

number	name
19	Packing
20	Bonnet V-packing
21	Bottom gasket
22	Bonnet bolt/nut/sw
23	Stem bolt/nut/sw
24	Gland stud bolt/nut/sw
25	Bonnet gland bolt/nut/sw
26	Yoke plate bolt/sw
27	O-ring

number	name
28	Cover stud bolt
29	Rod nut stud bolt
30	Clamp bolt/sw
31	Bottom bolt/sw
32	Cover bolt/sw
33	Bottom cover gasket
34	Name plate
